Introduction
Most drivers check their tires once a year, usually right before a road trip. That's a problem, because tread wear isn't always gradual or even. By the time a problem becomes visible, stopping distances have often already grown.
In AAA's 2018 wet-braking tests, tires worn to 4/32 inch needed an average of 87 additional feet to stop compared with new tires, a 43% increase across the vehicles tested.
Wear bars exist to flag this before it turns dangerous. They're small raised ridges built into the tread grooves that become flush with the surface once tread wears down to roughly 2/32 inch, the point most sources treat as worn out.
This guide covers where to find wear bars, how to check tread with a coin or gauge, what the results mean, and which forms of damage a wear bar will never show you.
Key Takeaways
- Wear bars are molded rubber ridges in tread grooves; tread level with them means plan replacement.
- Inspect every tire's full width and circumference; inner edges hide wear outer shoulders miss.
- A tread-depth gauge gives an exact number; coin tests only offer a rough screening.
- Cracks, bulges, punctures, or exposed cords matter even when wear bars look fine; ask a tire professional.
What You Need to Check Tire Wear Bars
A reliable tread check takes more than a glance at whichever tire happens to face the driveway. Good lighting, safe access to all four tires, and a willingness to look past the most visible patch of rubber all matter here. Skipping these basics is usually how drivers miss the one worn spot that actually counts.
Tools and Indicators Required
You don't need a shop full of equipment, just a few basics:
- Flashlight - for shadowed grooves and dark garages
- Tread-depth gauge - gives a numerical reading in 32nds of an inch
- A US quarter or penny - useful for a quick preliminary screen
- Gloves - to avoid handling dirty or damaged rubber directly
- Owner's manual or tire manufacturer guidance - for model-specific replacement advice
Keep in mind what each tool actually tells you. A gauge produces a number. Wear bars and coin tests are visual screening methods only, and neither should be treated as a complete diagnosis of tire condition.

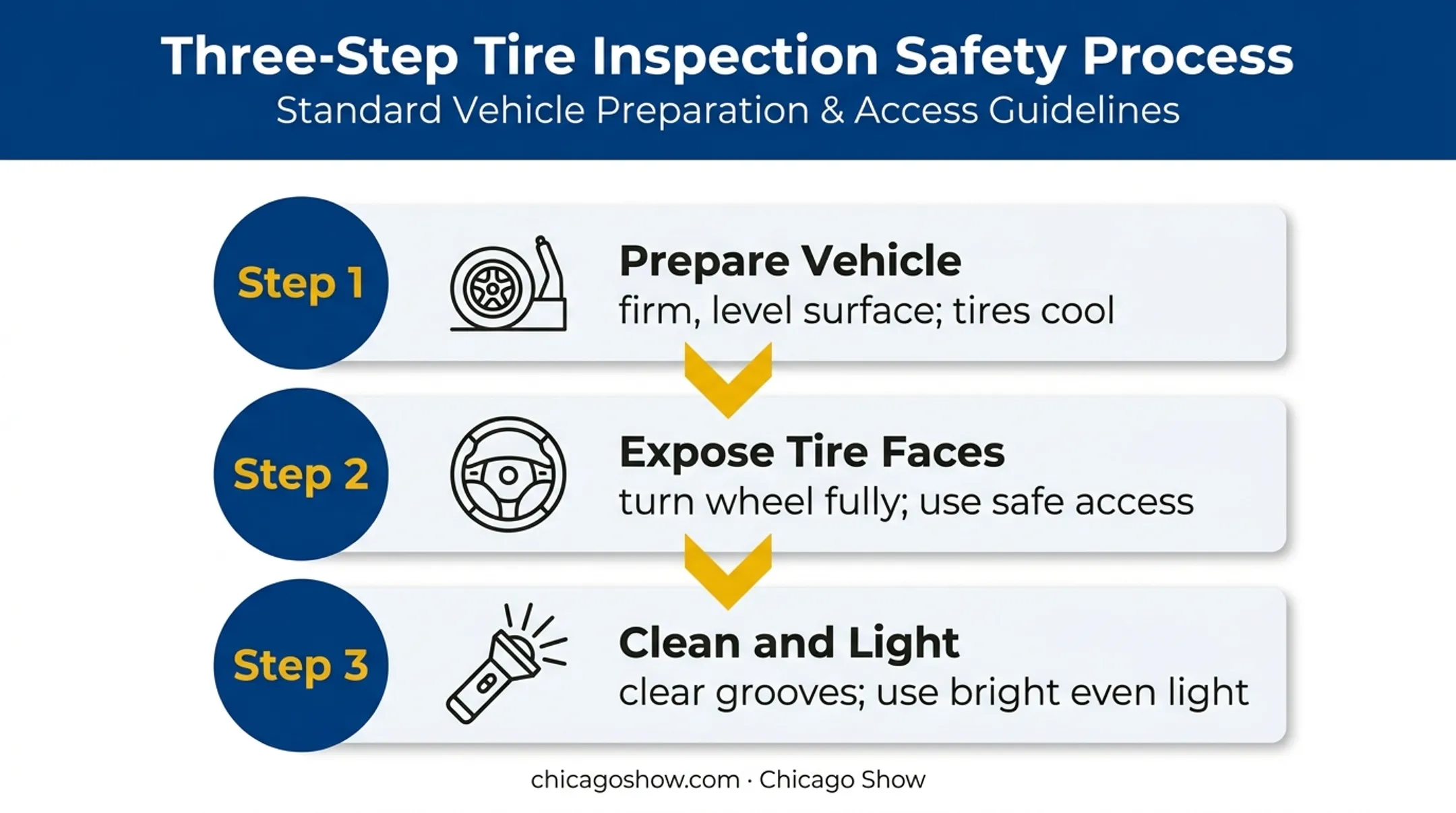

Preconditions and Setup
Set the stage before you start checking:
- Park on a firm, level surface, apply the parking brake, turn off the vehicle, and let the tires cool before inspecting them.
- Turn the steering wheel fully in each direction to expose the front tire faces, and use a professional lift, not a makeshift reach under the car, for anything you can't see safely.
- Clean the grooves of dirt and debris, and use bright, even light. Mud, shadows, and wet rubber can all hide a wear bar or a crack that would otherwise be obvious.
Methods to Check Tire Wear Bars
Three methods cover most situations, ranked from fastest to most precise: a visual wear-bar check, a coin test, and a tread-depth gauge reading. Combine them rather than relying on just one. The visual check catches obvious wear fast, the coin adds a rough second opinion, and the gauge settles anything borderline.
Method 1: Inspect the Built-In Wear Bars
Wear bars are raised bridges of rubber molded into several tread grooves, usually marked by small symbols or letters on the tire's shoulder that vary by manufacturer.
- Locate the molded indicators, then move around the entire tire rather than judging it from a single groove.
- Compare tread height to each bar. Note whether the surrounding rubber is clearly above the bar, approaching it, or flush with it.
- Check inner, center, and outer tread areas separately. One section can reach the bar well before the rest of the tire does.
Pros: Fast, free, requires no tools. Cons: Threshold warning only, not a measurement. Hard to read on dirty or unevenly worn tires.
Method 2: Use a Coin as a Preliminary Tread Check
A US coin test gives a quick read on whether tread is getting low, but it's not a substitute for a gauge or a professional inspection.
- Insert the coin into several major grooves, head facing down so you can see how much of the head sits above the tread.
- Repeat at the inner, center, and outer portions of each tire, and note the shallowest-looking spots.
- Compare the result against the wear bars. Don't let a passing coin test wave off visible cords, bulges, cracks, or severe uneven wear.
Consumer Reports describes the penny and quarter method this way: if the top of Lincoln's head stays visible on a penny, tread is around 2/32 inch or less. A quarter showing the top of Washington's head suggests roughly 4/32 inch or less, which AAA treats as an earlier warning sign.
Pros: Cheap, quick, no equipment needed. Cons: Approximate only. Different coins answer different questions, and uneven tread is easy to misread.
Method 3: Measure Tread Depth With a Gauge
A tread-depth gauge is the most useful at-home method for getting an actual number. Compare your readings with manufacturer guidance and your state's legal minimum.
- Place the probe in a clean groove, keeping the gauge's base flat against the tread blocks. Never measure on top of a wear bar; it isn't the groove bottom.
- Take readings at the inner, center, and outer tread areas, and at several points around each tire. Use the lowest number you find.
- Record the results and compare them to the wear-bar height and manufacturer recommendations. If readings vary a lot across one tire, get a professional opinion.
Pros: More precise than a visual or coin check. Cons: Doesn't assess internal tire damage, rubber age, alignment, or suspension condition.
How to Interpret the Results
Tread depth and wear-bar position tell you how much rubber is left. They don't tell you the whole story. Uneven wear, weather conditions, physical damage, and tire age all factor into the real decision.
| Condition | What it means | What to do |
|---|---|---|
| Normal | Tread sits visibly above the wear bars, relatively even across the width | Keep up routine pressure checks and rotations |
| Minor issue | Tread is approaching the bars, or one area wears faster than another | Plan replacement; check alignment, balance, and suspension |
| Out-of-spec | Tread flush with wear bars, exposed cords, sidewall bulge, deep cuts, or severe cracking | Stop driving on it; get a professional assessment immediately |

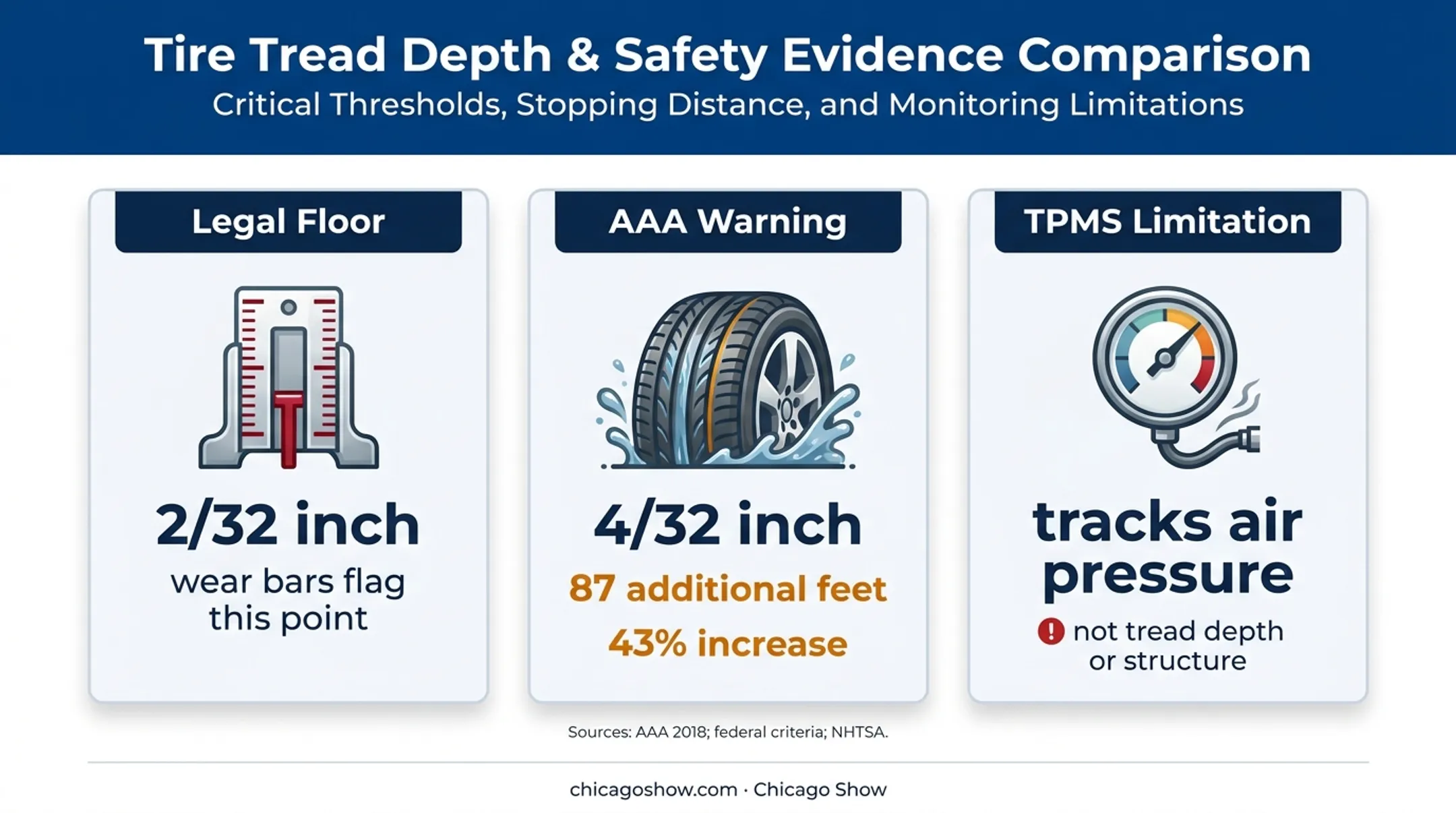

Legal minimum isn't the same as "best time to replace." Federal in-use inspection criteria set 2/32 inch as a floor, and that's the point wear bars flag. But AAA's wet-braking data showed an 87-foot increase measured at 4/32 inch, not 2/32. A tire can pass the legal threshold and still perform noticeably worse in rain.
Your TPMS light tracks air pressure, not tread depth or structural condition, according to NHTSA's tire safety guidance. A tire can show perfectly normal pressure and still need replacing.
Depth, wear pattern, and condition all matter together, which is why many tire retailers and dealership service drives keep printed tread-depth charts or cutaway tire models near the counter. A technician pointing at a number means more when the customer can see what it looks like. Chicago Show has built this kind of point-of-purchase education material for tire brands and dealer networks for years. The goal is simple: turn a technical explanation into something a customer understands in ten seconds.
Common Mistakes and Safety Best Practices
Common Inspection Mistakes
A handful of habits can turn an accurate-feeling check into a false sense of security:
- Checking only the outside shoulder. Inner-edge wear is common and easy to miss; inspect all four tires across the full tread width.
- Measuring on top of a wear bar or at an angle. Either one distorts the reading, and so does wedging a coin against a tread block instead of into a groove.
- Treating a coin test or TPMS light as a full inspection. Neither one catches tread variation, alignment-related wear, punctures, or sidewall damage.
- Mistaking molded logos or letters for wear bars. Confirm the actual indicator location using the manufacturer's documentation, not a guess.
Safety Precautions
Keep these in mind every time you're near a raised vehicle:
- Working under a jack-only vehicle. Never place any part of your body under a vehicle supported only by a jack. Use proper stands, or have a professional check anything out of easy reach.
- Handling damaged rubber bare-handed. Wear gloves and avoid direct contact with damaged rubber or exposed cords.
- Inspecting in poor light. Use daylight or a strong flashlight, and keep the grooves clear enough to read.
- Ignoring other warning signs. Stop trusting a wear-bar check alone if the vehicle pulls, vibrates, loses pressure quickly, or a tire shows sudden damage. Get it looked at promptly.
Conclusion
Accurate tire inspection combines three things:
- Built-in wear bars
- A full visual check across the entire tread
- A gauge reading when precision matters
What you find drives the next step:
- Healthy, even wear — keep up routine monitoring
- Tread near the bars — plan replacement soon
- Exposed cords, bulges, or severe cracking — address it now, not at the next oil change
Frequently Asked Questions
What does a tire wear indicator look like?
A wear indicator is a raised rubber bar across the bottom of a tread groove, often marked by a small symbol or letters on the tire's shoulder. When surrounding tread sits flush with the bar, follow that tire's replacement guidance.
Is a 3/32 tread bad for tires?
3/32 inch is above the common 2/32-inch minimum, but it leaves less wet-traction margin than deeper tread. Follow your tire manufacturer's guidance and plan replacement sooner if you often drive in rain.
What is the difference between tire cupping and feathering?
Cupping appears as scalloped high-and-low spots around the tread and often traces to suspension, balance, or alignment issues. Feathering feels smooth one way and sharp the other on the tread blocks, usually from misalignment. Both patterns deserve a professional inspection.
